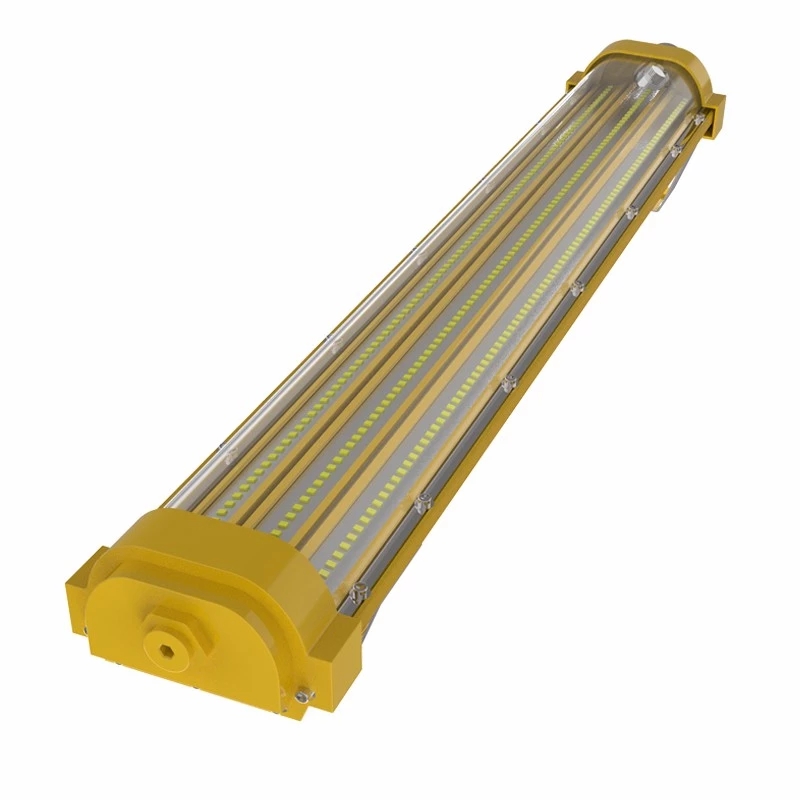

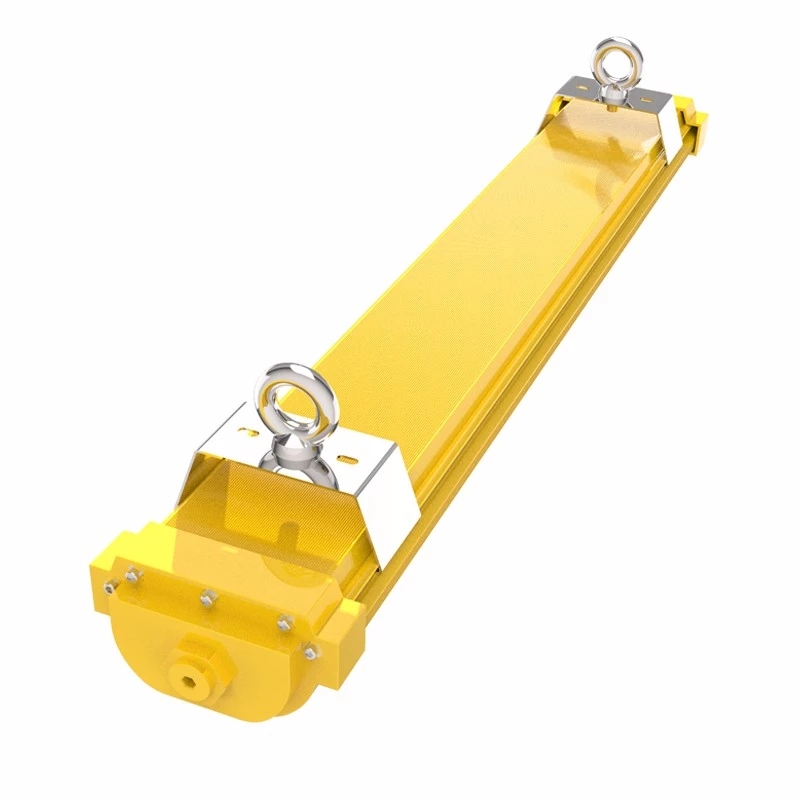

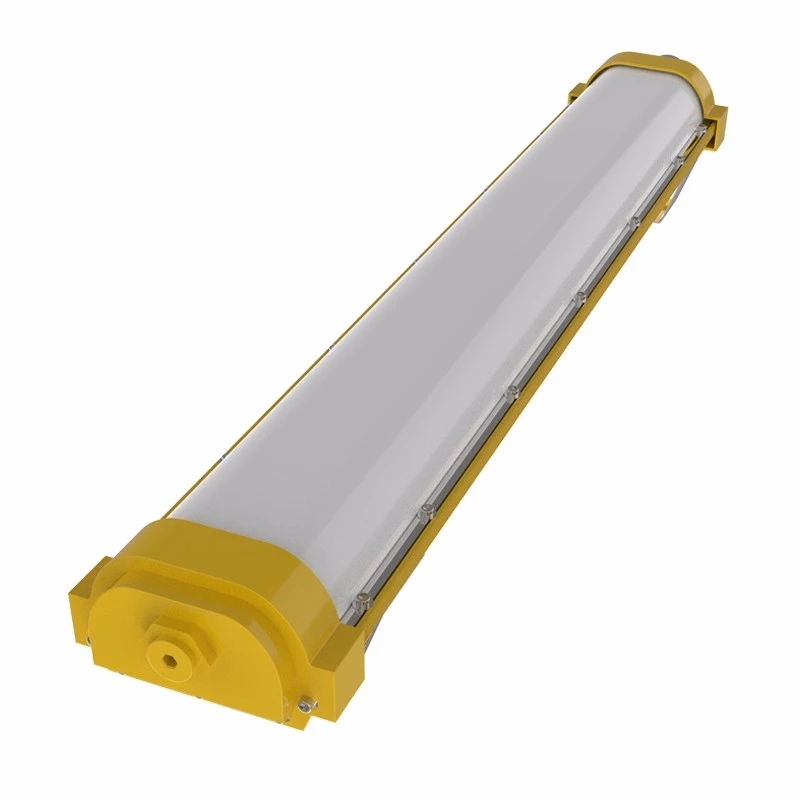

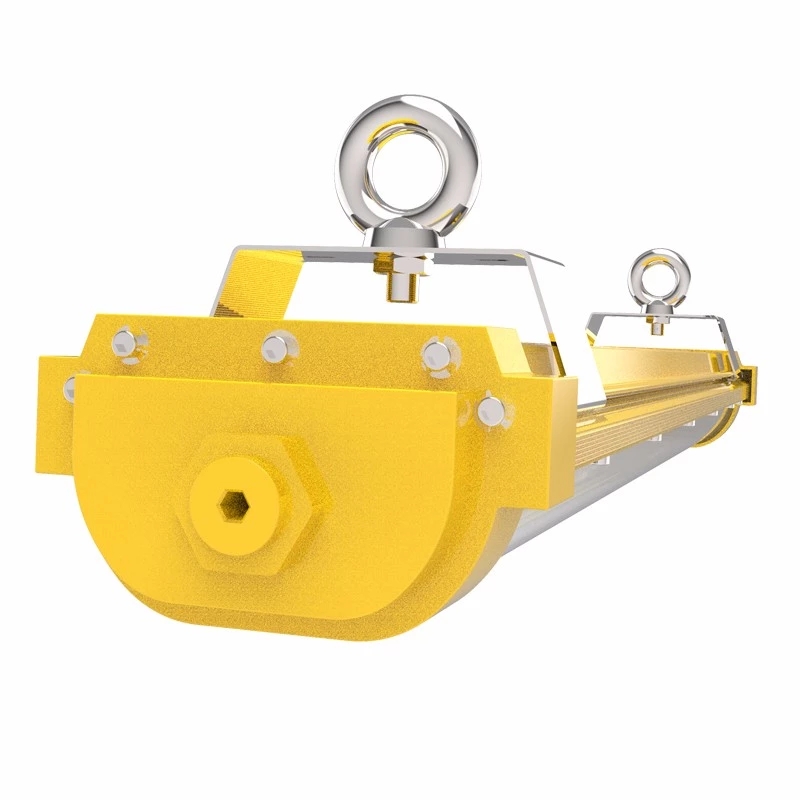

LED Highbay | 20W-80W | 120LM/W | ATEX Exposion-proof | Limbo

  • ATEX Linear Highbay, Explosion-proof
  • 20W-80W // 120LMW
  • Base Type: Ex emb II CT6 GC
  • Beam Angle: 160°
  • Working Temperature: -25℃ - +60℃
  • Microwave Sensor, DALI & 0/1-10V
  • IP66 & IK10

Input Voltage(V): 85-305VAC  /  Lamp Power(W): 20W-80W

Driver: explosion proof driver

Housing: explosion proof aluminum housing

CRI (Ra>): 70   /    Lamp Luminous Flux(lm): 120LM/W

Power factor: >0.95 /   Beam Angle: 160°

IP Rating: IP66   /   Impact Test: IK10

Surge protection: 2KV  /  Base Type: Ex emb II CT6 GC

Working Lifetime(Hour): 50,000  /  Working Temperature(℃): -25 – +60

Dimming and sensor: micro-wave sensor, PWM, DALI, 0/1-10V

Certification: BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, Reach, RoHS, Saa, SASO, UL, VDE

Application:gas station,oil refinery, paint booth, oil tank etc

Warranty: 5 years
