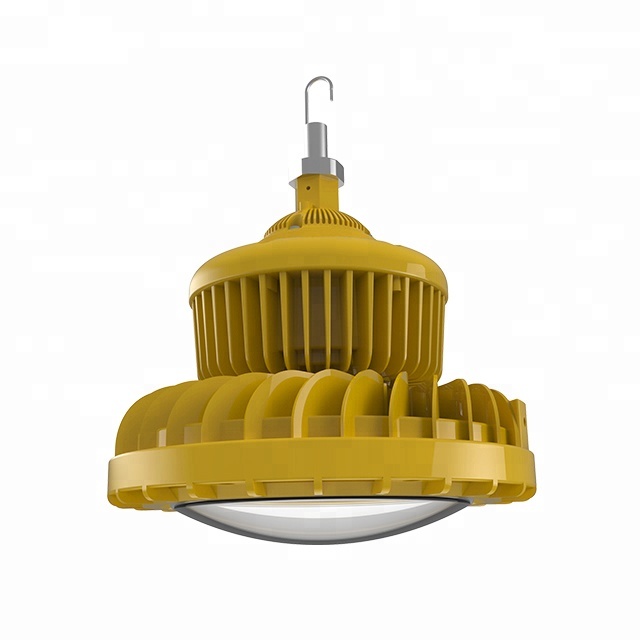

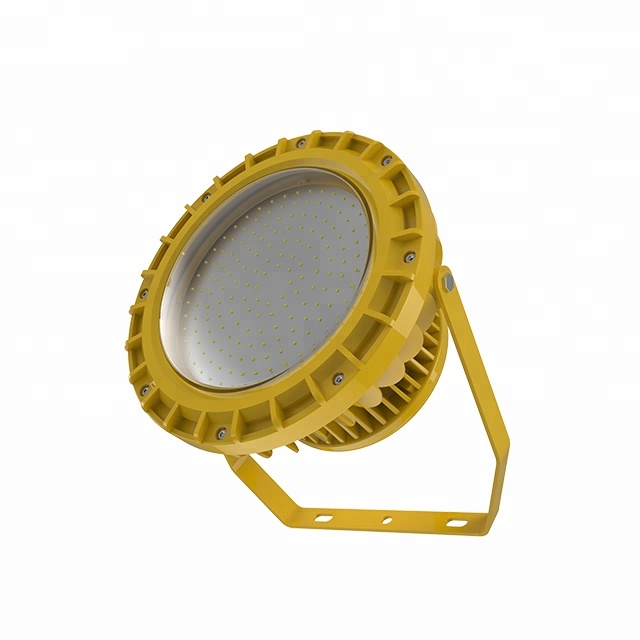

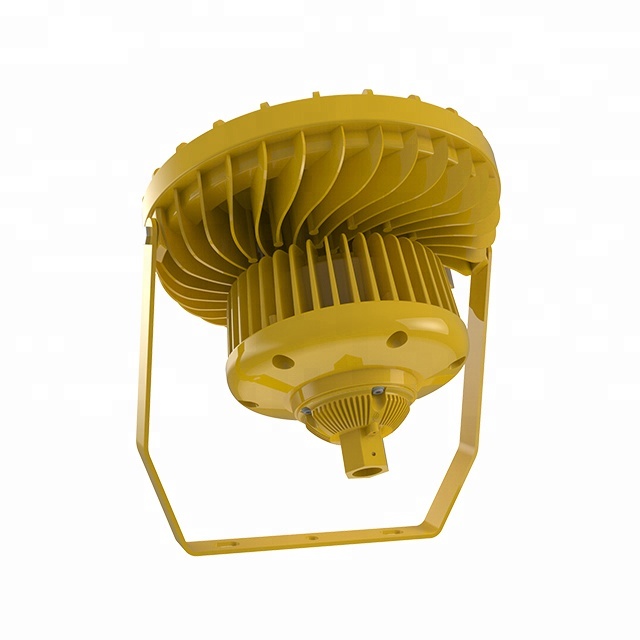

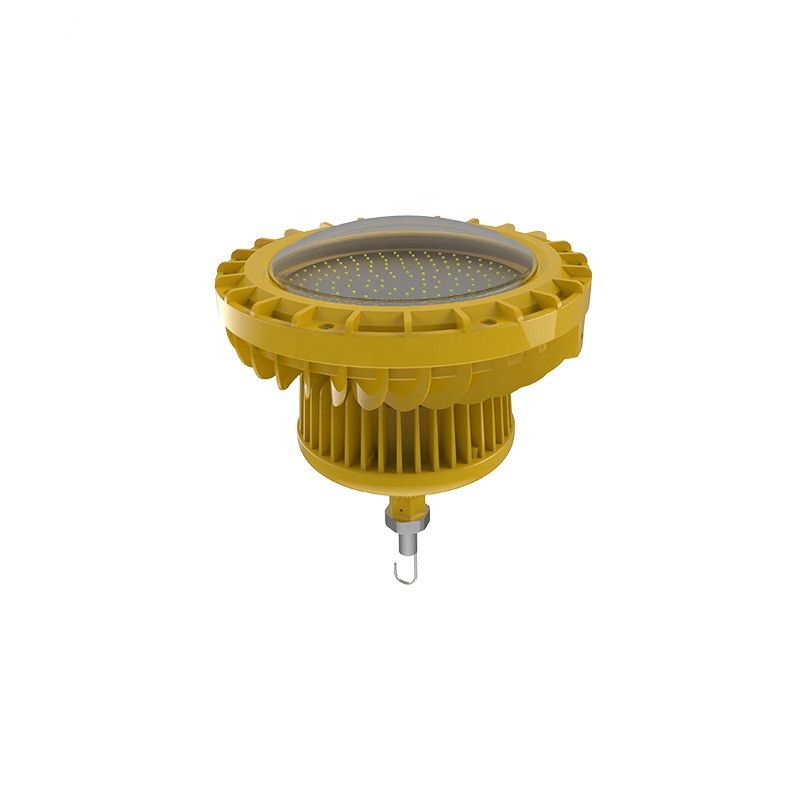

LED High Bay | 60W-200W 130LM/W | ATEX & WF2 Exposion-proof | Aligio


Application: Chemical Industry, Gas Station, Oil Store etc

Lighting solutions service: Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

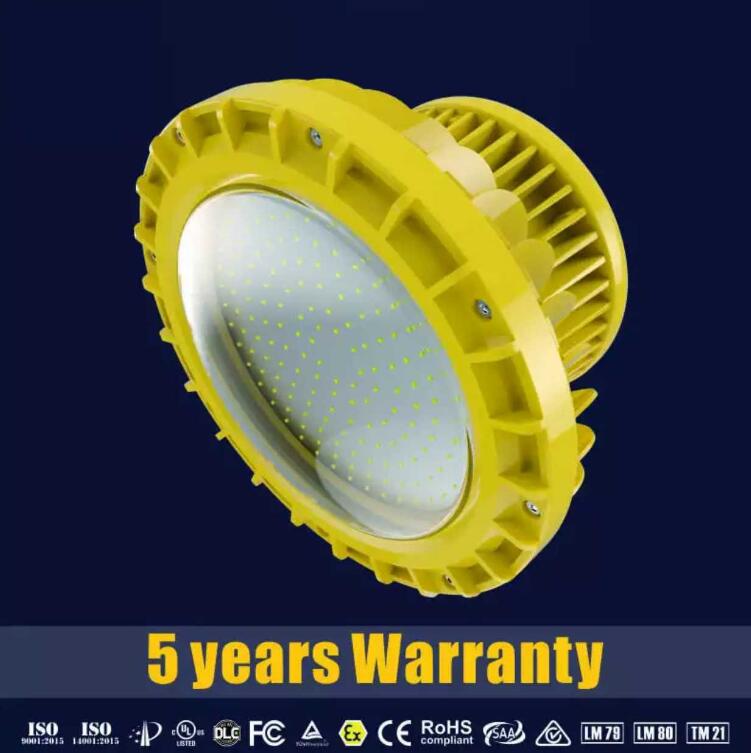

Warranty: 5 Years

  • 60W-200W 130LM/W
  • with Meanwell Driver non-flicker
  • 70/80/90Ra available
  • -25℃ - +60℃
  • ATEX & WF2
  • IK10 // IP66
  • SPD>6Kv

Input Voltage(V): 85-305VAC

Lamp Power(W): 60W-200W    /    Driver: Meanwell

CRI: Ra70/ Ra80/ Ra90 for option

Lamp Luminous Flux(lm): 13000  /  Beam Angle: 120 degree

Working Lifetime(Hour): 50000   /   Working Temperature(℃): -25 – +60

Surge Protection: 6KV    /  IP Rating: IP66   / Impact Rating: IK10

Certification: CE, RoHS, ATEX    /    Corrosion proof: WF2

Email us for a sample
